Custom 2018-2023 VELLFIRE/ ALPHARD Tail Lamps

Home / Product / Auto Lamp / Toyota / 2018-2023 VELLFIRE/ ALPHARD Tail Lamps

Product Category

Related Products

Contact Us

We are a Professional Power Tools Manufacturer

+86-13915098651
Toyota

2018-2023 VELLFIRE/ ALPHARD Tail Lamps

PREV：2018-2023 VELLFIRE/ ALPHARD White Tail lampsNEXT：2018-2023 VELLFIRE Auto Headlamp
Contact Us
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps
  • 2018-2023 VELLFIRE/ ALPHARD Tail Lamps

Tail lamps serve as rear lighting on vehicles and are essential for visibility for 2018-2023 VELLFIRE/ ALPHARD

Product Introduction

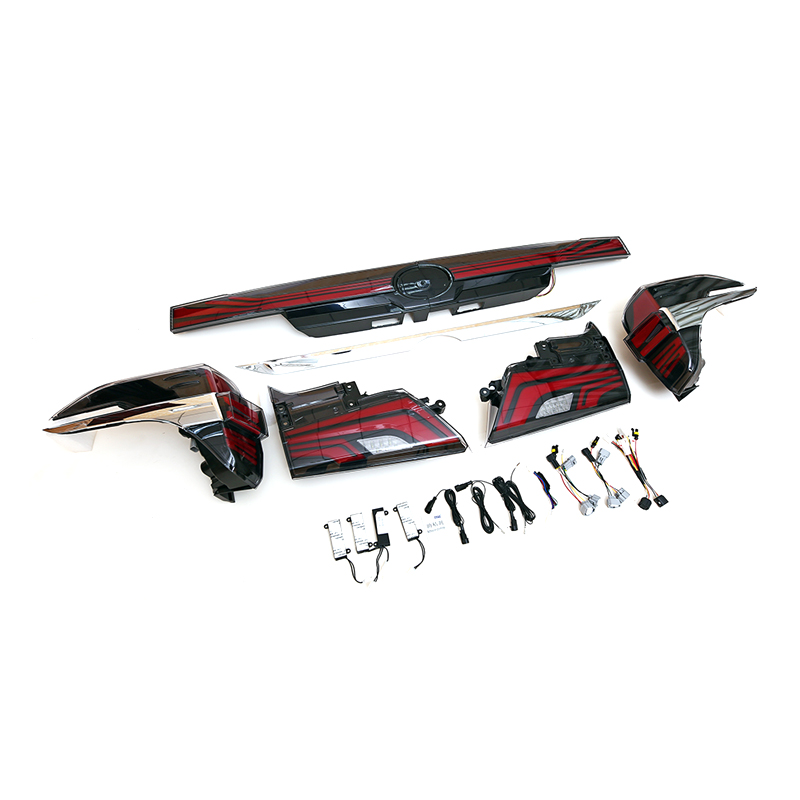

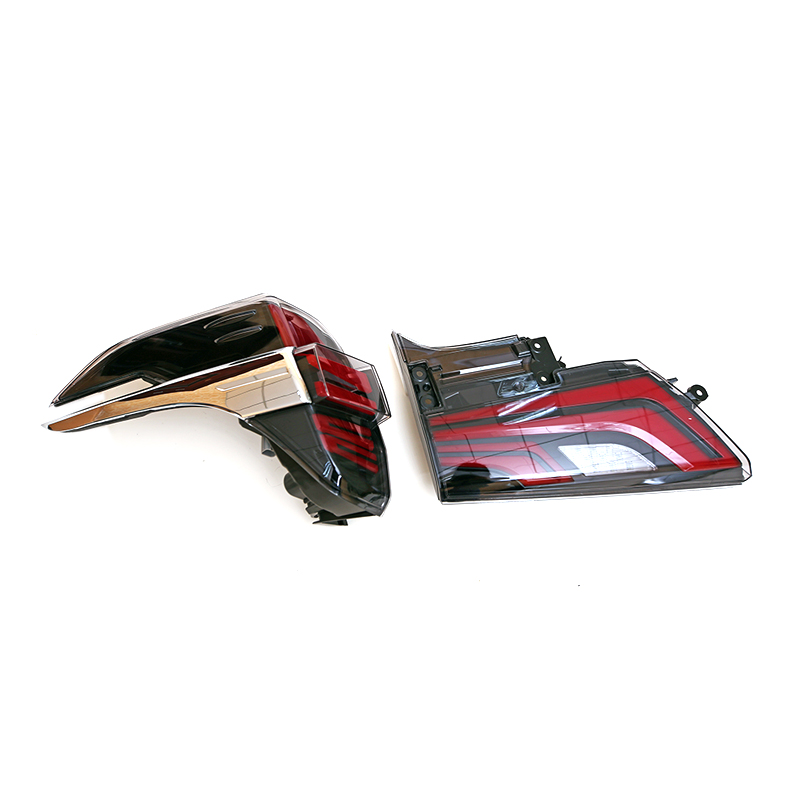

   These tail lamp assemblies are engineered for Toyota VELLFIRE and ALPHARD model years 2018 through 2023. The tail lamps serve as the primary rear lighting system, including stop lamp, tail lamp, turn signal, reverse lamp, and rear fog lamp functions (market dependent). Each unit features full LED technology for stop and tail functions, with sequential or standard amber LED turn signals depending on version. The housing features a red lens with crystal-clear sections for reverse and turn signal areas. The lamps are designed as direct replacements for factory units, integrating with existing mounting points and electrical connectors. Plug-and-play harness adapters are included for connection to factory wiring without modification.

Core Advantages

01
VELLFIRE / ALPHARD Fitment
Engineered for 2018-2023 Toyota VELLFIRE and ALPHARD using OEM mounting points and connector layouts for direct replacement.
02
LED Stop and Tail Functions
Utilizes LED technology for stop lamp and tail lamp functions, providing consistent brightness and faster illumination response compared to halogen bulbs.
03
Sequential Turn Signal Option
Available with sequential amber LED turn signals that illuminate in a progressive pattern from inner to outer edge.
04
Plug-and-Play Installation
Includes harness adapters that connect directly to factory tail lamp connectors. No cutting or soldering required.
05
Durable Housing Construction
Polycarbonate lens with UV-resistant coating and ABS back cover. Housing sealed to prevent moisture ingress. IP65 rated.
06
Factory Red Lens Finish
Red lens with clear or smoked sections maintains factory appearance while providing modern LED lighting characteristics.

Product Features

Stop lamp (brake light) High-intensity red LED array. Activates when brake pedal is pressed. Provides instantaneous illumination with faster response time than incandescent bulbs.
Tail lamp (position light) Red LED array with lower intensity than stop lamp. Activates with headlamp switch in tail or head position. Provides rear vehicle conspicuity at night.
Turn signal indicator Amber LED. Available in sequential (progressive illumination) or standard flash pattern. Operating frequency: 60-120 flashes per minute.
Reverse lamp White LED within crystal-clear lens section. Activates when transmission is in reverse gear. Provides bright rearward illumination for parking and reversing.
Rear fog lamp Red high-intensity LED (left side for RHD markets). Activates via dedicated rear fog switch. Improves visibility in fog, rain, or snow conditions.

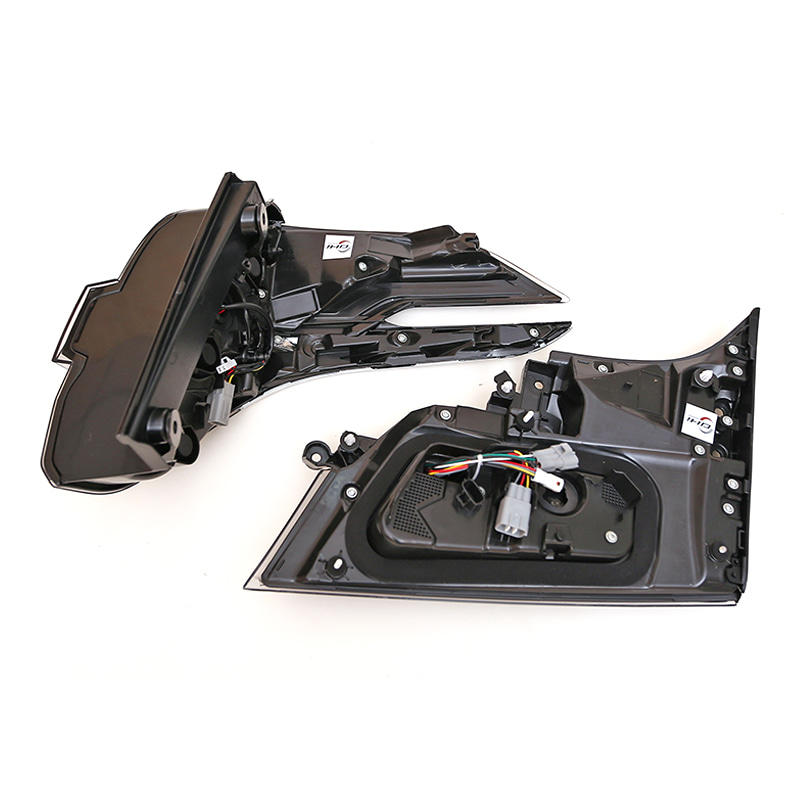

Housing construction Lens: red polycarbonate with crystal-clear sections, UV protective coating. Back cover: ABS plastic. Sealing: butyl rubber gasket.

Technical Specifications

Parameter Specification
Stop lamp type Red LED array, 18 LEDs per side
Tail lamp type Red LED array, 12 LEDs per side
Turn signal type Amber LED, sequential or standard (8 LEDs per side for sequential)
Reverse lamp type White LED, 4 LEDs per side
Rear fog lamp Red LED (single side, market dependent)
Color temperature (reverse) 6000K
Operating voltage 12V DC (10-16V range)
Total power consumption 24W per side (all functions combined)
Housing material Polycarbonate lens, ABS back cover
Ingress protection IP65
Operating temperature -30°C to +70°C
Connector type Toyota factory-compatible with included adapter harness

Application Scenarios

2018-2023 Toyota VELLFIRE (all trims)
2018-2023 Toyota ALPHARD (all trims)
VELLFIRE Z grade / Golden Eye / Hybrid
ALPHARD Executive Lounge / Hybrid
Factory tail lamp replacement
Nighttime visibility upgrade
Adverse weather driving (fog, rain, snow)

These tail lamps are compatible with all 2018-2023 Toyota VELLFIRE and ALPHARD variants including Z grade, Golden Eye edition, Executive Lounge, and hybrid models. Applications include replacement of damaged, faded, or cracked factory tail lamps, upgrading from standard bulb-type lamps to LED lighting for improved visibility and faster response times, and vehicles operating in low-light or adverse weather conditions where rear fog lamps provide additional conspicuity. The sequential turn signal option adds visual distinction during lane-change maneuvers. The IP65 rated housing is suitable for vehicles exposed to rain, car washes, and environmental moisture.

Common Questions and Solutions

Will these tail lamps fit both VELLFIRE and ALPHARD?
Yes. The tail lamp housing shape, mounting points, and connector layout are identical between VELLFIRE and ALPHARD for the 2018-2023 generation. The lamps are direct replacements for both models. Verify your vehicle's model year before ordering as pre-facelift and facelift versions have different tail lamp shapes.
Are the tail lamps road legal?
The tail lamps are designed to meet ECE R148 or SAE photometric standards depending on the version. The stop lamp intensity, tail lamp intensity, and turn signal flash rate comply with typical regulations. Sequential turn signals are legal in most regions but verify local laws before installation.
Will the sequential turn signals cause hyper-flash on my vehicle?
The tail lamps include integrated load resistors that match the electrical load of factory bulb-type turn signals. No hyper-flash should occur on vehicles with standard flasher relays. For vehicles with CAN-bus monitoring, an additional decoder may be required; this is included with the kit.
What is the installation time for the tail lamps?
Professional installation typically requires 1-1.5 hours, including removal of interior trim panels (on ALPHARD/VELLFIRE, the tail lamps are accessible from inside the cargo area), removal of factory units, adapter harness connection, and function verification. DIY installation may take 1.5-2 hours.
Do the tail lamps include the reverse lamp function?
Yes. The tail lamps include a reverse lamp section with white LED bulbs. The lens remains red when not illuminated; only the reverse lamp section illuminates white when reverse gear is engaged.
How do I prevent moisture condensation inside the tail lamps after installation?
Ensure all rubber grommets and vent tubes are properly positioned. The housing includes a breathable vent membrane to equalize pressure while blocking moisture. Do not seal the vent holes. If condensation appears, allow the lamps to dry in normal operating conditions for 48 hours. Persistent condensation indicates a damaged seal; contact support.

Installation Considerations

1
On VELLFIRE and ALPHARD models, tail lamps are accessed from inside the cargo area. Remove the interior trim panels covering the rear lamp housings using a trim removal tool. Retain all clips for reinstallation.
2
Disconnect the vehicle battery negative terminal before removal. Remove the electrical connector by pressing the release tab. Remove the 3-4 mounting nuts (size 10mm) securing the tail lamp housing. Carefully pull the housing away from the vehicle body.
3
Transfer any applicable components from the factory tail lamps including rubber seals and foam gaskets to the new units. Ensure the foam gasket is intact to prevent water entry behind the housing.
4
Connect the included harness adapter between the factory connector and the new tail lamp. For CAN-bus equipped vehicles, connect the decoder module as shown in the instruction manual. Secure wiring away from metal edges that could cause chafing.
5
Before securing the tail lamp, test all functions: stop lamp, tail lamp, left turn signal, right turn signal, reverse lamp, and rear fog lamp (if equipped). Verify no dashboard error warnings appear. If hyper-flash occurs on turn signals, confirm decoder module connection.
6
Reinstall the mounting nuts and torque to 5-7 N·m. Do not overtighten as the plastic housing may crack. Reinstall interior trim panels. Avoid pressure washing directly at tail lamp seals for the first 48 hours after installation to allow gaskets to seat properly.
Changzhou Xinkai auto parts Co., Ltd.

About Us

Changzhou XinKai auto parts Co., Ltd. Is a R & D, manufacturing, sales as one of professional automotive tuning company. The company was founded in 1999, the registered capital of 5 million yuan. Is located in the Menghe town,Changzhou ,Jiangsu which with the reputation of Chinese motorcycle production base.We are China Custom 2018-2023 VELLFIRE/ ALPHARD Tail Lamps Suppliers and OEM/ODM 2018-2023 VELLFIRE/ ALPHARD Tail Lamps Company.Companies adhering to enhance the appearance of the vehicle configuration, the concept of car modification trend, and constantly develop high-quality, personalized products.More than and 10 years of accumulated experience and unremitting efforts to form a rich product line. Covered bodykit,auto lamp, front and rear bumper, skid plate, side step/running board, roof rack, spoiler, grille, decorative trim and other series. Product suit for massive models included Chinese, Japan and South Korea, Europe and the United States brand.
Company currently covers an area of 15000 square meters, construction area of 50000 square meters, has a comfortable and elegant office environment and a new modern standard factory.Has a large injection molding machine, blow molding machine, precision hydraulic press equipment, advanced four-dimensional laser cutting equipment, as well as large CNC machine tools and other equipment.
Company staff 82 people, has a group of elite management and a high qualified professional design, technical team.Of which 5 professional designers, technical staff 6, college and higher education staff accounted for 19%.Of which 5 professional designers, technical staff 6, college and higher education staff accounted for 19%.
The company now has three registered trademark, 2 utility model patent, 76 product design patent . Three consecutive years was rated as high-tech enterprises in Changzhou City, the in the same industry to implement the "enterprise intellectual property management norms" national standards. At the same time for four consecutive years by the Chinese people's Insurance Group Limited by Share Ltd (PICC) to cover product liability insurance.
Consistently adhere to the quality of the for the company has brought a good reputation and fruitful results. Customers all over Southeast Asia, Middle East, North America, europe. Since the company was founded in 1999, sales have maintained a sustained and stable growth, from 2013 to 2015 of three years, the company annual sales of 250 thousand (sets), the annual output of up to 300 thousand pieces (sets). The company's brand "CXK" has high brand image and good reputation in exterior parts industry. Personalized customized products for customers is favored by the user.

Honor

  • Honor
  • Honor
  • Honor
  • Honor
  • Honor
  • Honor

News

Contact us now

Industry knowledge

Upgrade your automotive inventory with our premium aftermarket LED tail lamps designed specifically for the 2018 to 2023 Toyota Vellfire and Toyota Alphard models. Engineered by a leading automotive lighting manufacturer, these tail light assemblies combine striking modern aesthetics with elite level road safety.

Whether your clients want a direct factory replacement or an upscale facelift modification, our tail lamps deliver exceptional illumination performance and perfect vehicle fitment. We specialize in bulk wholesale supply, offering global distributors, importers, and auto parts retailers a highly profitable product that meets strict international standards.

Key Product Features and Advantages

  • Advanced LED Illumination
    Our tail lamps utilize high density light emitting diodes to produce sharp, vibrant light. This ensures maximum visibility during heavy rain, thick fog, or nighttime driving, significantly improving vehicle safety.
  • Dynamic Sequential Turn Signals
    Featuring modern flowing turn signal animations, these lamps provide a premium visual effect that mirrors high end luxury vehicle trends, making them highly desirable in the aftermarket modification market.
  • Plug and Play Installation
    Engineered to precisely match the original factory wiring harness and mounting points. No vehicle modification or wire splicing is required, which lowers installation costs and reduces the risk of errors.
  • Durable Weatherproof Construction
    The rugged outer housing is molded from premium grade polycarbonate materials. It features complete sealing against moisture, dust, and environmental wear, ensuring a long operational lifespan without fading or cracking.

Why Partner With Us

As an established automotive component manufacturing enterprise, we offer unique supply chain advantages that help your business succeed in competitive wholesale markets.

  • Factory Direct Pricing
    By eliminating middle trading companies, we pass the direct manufacturing cost savings on to our B2B partners, ensuring excellent profit margins for your distribution network.
  • Strict Quality Management
    Every single batch of tail lamps undergoes rigorous testing, including vibration tests, moisture resistance inspections, and continuous aging analysis to guarantee stable performance.
  • Consistent Bulk Supply Capacity
    Our factory is equipped with advanced automated production lines, allowing us to maintain stable lead times and fulfill large scale volume orders without compromising on product quality.

Technical Specifications

Parameter Product Details and Standards
Compatible Vehicles Toyota Vellfire and Toyota Alphard 30 Series
Applicable Model Years 2018 to 2023
Light Source Type Premium High Brightness LED
Lens Options Clear Lens or Smoked Lens Styles
Main Functions Running Light Brake Light Sequential Turn Signal Reverse Light
Input Voltage 12 Volts
Housing Material High Impact ABS and Polycarbonate
Waterproof Rating Fully Sealed Weatherproof Design
Certifications Compliant with International Automotive Lighting Standards

Frequently Asked Questions

Do these LED tail lamps require any wire cutting or vehicle modification during installation

No these tail lamps are designed for a true plug and play experience. The connectors are engineered to match the original factory harness perfectly, allowing for a clean installation without any electrical modification.

Can these lights fit both the Alphard and Vellfire models from 2018 to 2023

Yes they are compatible with the 30 Series facelift models of both Alphard and Vellfire spanning the years 2018 to 2023. We recommend verifying specific regional trim configurations with our team before ordering in bulk.

What is the minimum order quantity for wholesale distribution

As a direct manufacturing factory we cater to wholesale trade. Please contact our international sales department with your specific market requirements so we can provide a tailored quotation and discuss minimum order volume options.

How does your factory ensure the quality and durability of the tail lamps

We implement comprehensive quality control checks at every stage of production. This includes rigorous thermal testing, water submersion tests to check the seals, and photometrics verification to guarantee proper brightness levels.

Do you offer custom branding or packaging options for large wholesale orders

Yes we provide complete original equipment manufacturer services for qualified volume buyers. This includes custom protective packaging design and branded labeling to help build your local market presence.
